Mechanical Parts

The Library’s Included > Mechanical folder holds parametric mechanical parts: gears, threads and screws.

Tools

Involute Gear Threads
mechanical_gears mechanical_threads

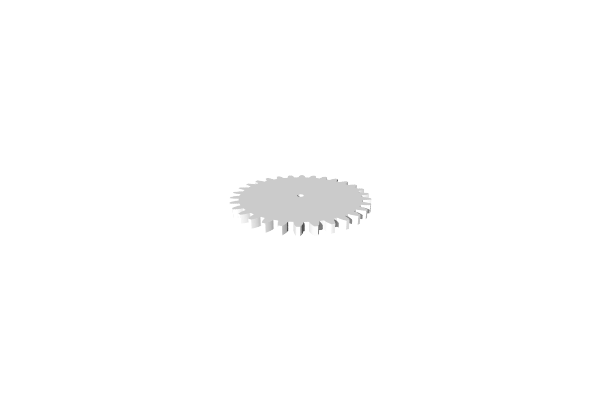

  • Involute Gear - Spur gears, racks and internal gears with configurable teeth, circular pitch and pressure angle, as a solid or a 2D outline

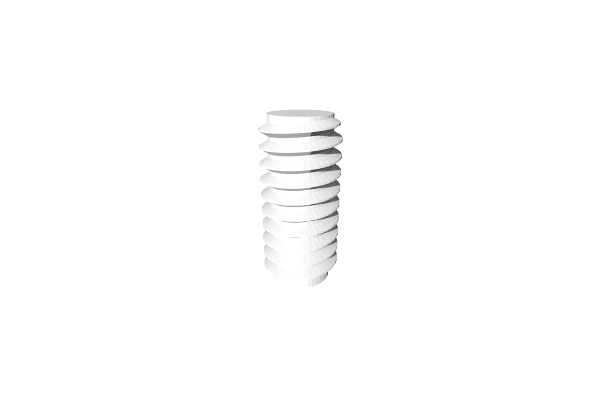

  • Threads - A threaded rod, or the threaded hole it fits
  • Screw - A complete fastener from a standard metric or inch size, or the hole for one
  • Cycloidal Gear - Generate the disc and pin ring of a cycloidal speed reducer
