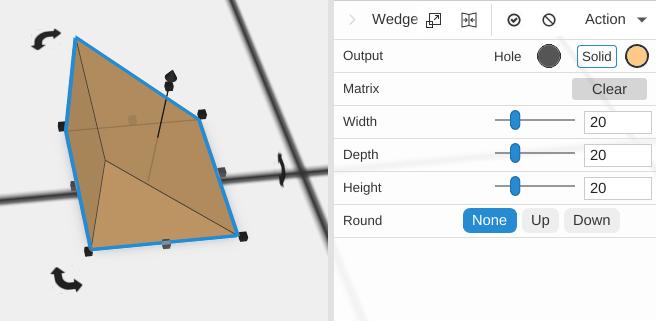

Wedge

A triangular prism shape – like a cube cut diagonally from one edge to the opposite edge. Useful for ramps, supports, and angled surfaces.

20260318 184625 paste 20260318 184625

Parameters

  • Width - Size along the X axis (default: 20mm)
  • Depth - Size along the Y axis (default: 20mm)
  • Height - How tall the wedge is at its tallest point (default: 20mm)
  • Round - Shapes the sloped face: None (default) keeps it flat, Up bulges it outward in a curve, Down curves it inward
  • Round Segments - How many steps make the curved face (default 15; 2 to 90). More is smoother. Shown only with Round set to Up or Down

Tips

  • Wedges are great for creating ramps, angled brackets, and support structures
  • Use Round Down for a curved ramp, or Up for a quarter-round molding
