MatterCAD 2.2026.5

20260506 162820 paste 20260506 162820

What’s New

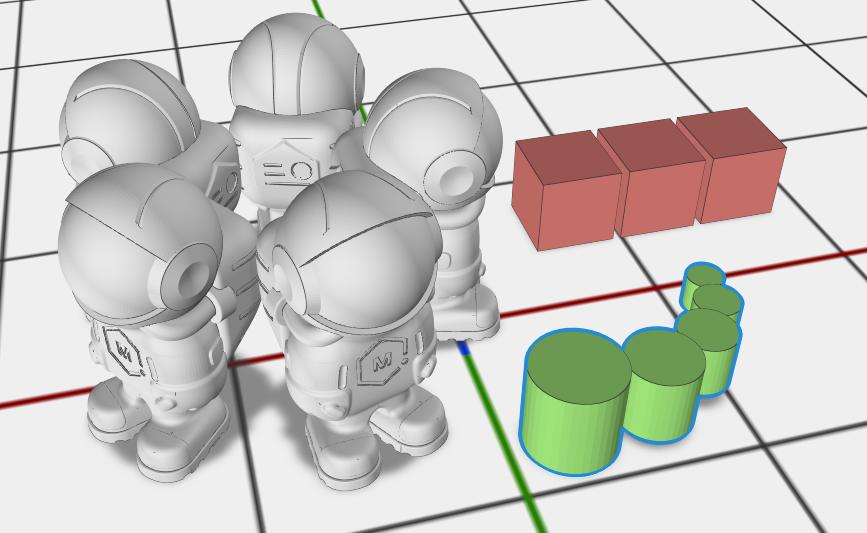

  • Redesigned Array Tool
    • One tool, four modes — Linear, Radial, Curve, and Transform
    • Radial mode places copies in a circle or arc at any radius around any axis
    • Compounding rotation in Linear mode creates spirals and fans automatically
  • Library Favorites
    • Star any library item to pin it to a persistent Favorites folder
    • Your most-used primitives and saved parts are always one click away
    • 20260506 083533 paste 20260506 083533 20260506 083600 paste 20260506 083600
  • Improved Align Tool
    • Align now has clear Simple, Offset, and Stacked modes so it is easier to line up parts, add gaps, and build ordered stacks
    • Two objects with the Align operation settings visible

Improvements

  • File Support — WEBP images now supported; improved SVG import reliability
  • Reliability — Faster 3MF loading and better tab restoration between sessions

Top Bug Fixes

  • Login and Cloud Library Access — Login and Cloud Library access are restored after a backend server upgrade broke sign-in
  • Scene Tree Selection — Fixed inconsistent selection behavior in the scene tree
  • Help Navigation — Fixed help navigation issues in the bundled release docs
  • Library Right-Click — Fixed right-click behavior in the library tree view
  • Sheets — Fixed a crash that could happen while working with sheets

You can view the full release notes Here.
