Cube

A rectangular box shape with adjustable width, depth, height, and optional rounded edges. The Cube is one of the most commonly used primitives for building designs.

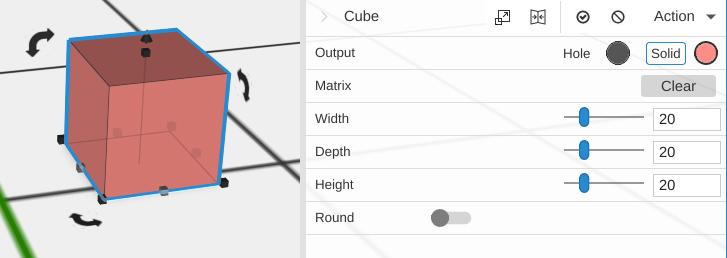

20260318 183230 paste 20260318 183230

Parameters

  • Width - Size along the X axis (default: 20mm)
  • Depth - Size along the Y axis (default: 20mm)
  • Height - Size along the Z axis (default: 20mm)
  • Round - Off by default. Turn it on to round every edge
  • Radius - The size of the rounding, in mm (default 3; the slider runs 0 to 20). Shown only with Round on
  • Round Segments - How many steps make each rounded edge (default 9; the slider runs 1 to 20, and you can type up to 90). More is smoother. Shown only with Round on

Tips

  • Use a Cube as the starting point for boxes, plates, brackets, and enclosures
  • Enable Round for smooth, professional-looking edges
  • The Radius cannot exceed half of the smallest dimension
  • Combine a Cube with Subtract to create rectangular cutouts and slots
  • Cylinder - Round column shape
  • Pyramid - Tapered four-sided shape
  • Hole - A cube pre-configured for boolean subtraction
