Intersect

Intersect keeps only the volume where two or more objects overlap, discarding everything else. This is useful for creating shapes that conform to the boundaries of multiple objects.

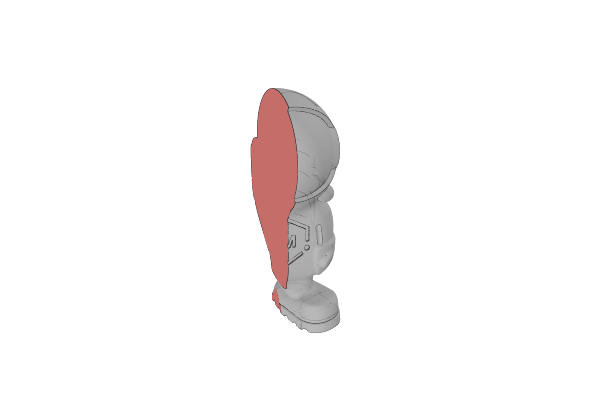

boolean_intersect

How to Use

  1. Select two or more overlapping objects
  2. Click the Intersect button in the toolbar
  3. MatterCAD calculates the overlapping volume and creates a new shape from it

Only the region that exists in all selected objects is kept. Everything outside the overlap is removed.

Tips

  • Objects must actually overlap for Intersect to produce a result. If there is no overlap, the result will be empty
  • Intersect works sequentially when more than two objects are selected – first two are intersected, then the result is intersected with the third, and so on
  • This operation is useful for trimming objects to fit within a specific boundary shape
  • Intersect preserves per-face colors from the original objects
